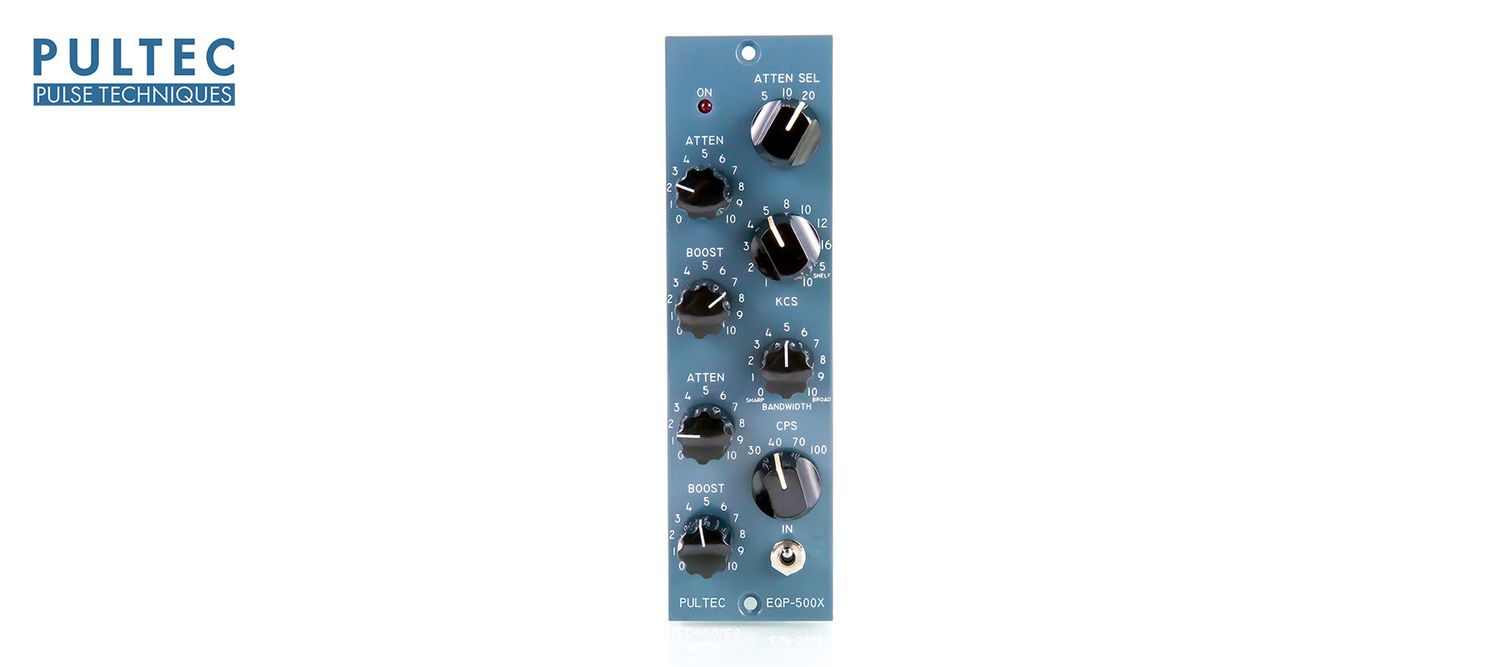

Pultec Pultec EQP-500X 500 Series Equaliser

Pultec Pultec EQP-500X 500 Series Equaliser

The Pultec EQP-500X uses an op-amp based on the API 2520 replacing the valves found the original EQP-1A. The API inspired op-amp provides a cleaner and more transparent tone without sacrificing the depth and musicality Pultec EQs are known for.

A mixture of the EQP-1A3-SS and EQP-1S3-SS, the EQP-500X features a unique blend of frequencies with an increased amount of high peak boost frequencies (1kHz, 2kHz, 3kHz, 4kHz, 5kHz, 8kHz, 10kHz, 12kHz and 16kHz). It further includes two shelving boost frequencies of 5kHZ and 10kHz. High attenuation frequencies include the classic 5kHz, 10kHz and 20kHz.

The Low band offers the same frequency choice as on the EQP-1S3-SS (30Hz, 40Hz, 70Hz, 100Hz)

Features

• Single-channel, 2-band equalizer built to 500 Series specifications
• The vintage character of original Pultecs, the reliability of modern design
• Incredibly low noise floor for a pure sound
• Bandwidth control lets you decide how wide a range you're sculpting
• Separate boost and cut controls provide additional creative potential

Specifications

• 30, 40, 70, 100Hz shelf boost, 0-13.5dB
• 30, 40, 70, 100Hz shelf attenuate, 0-17.5dB
• 1, 2, 3, 4, 5, 8, 10, 12, 16 KCS peak boost, 0 - 18 dB
• 5, 10 KCS shelf boost, 0 - 14 dB
• 5, 10, 20 KCS shelf attenuate, 0 - 16 dB
• Amplifier: 20Hz-20kHz; +0, -1dB (ref: 1kHz, including input/output transformers)
• Input transformer: 600 ohms; output transformer: 600 ohms
• Noise: below -80dBm; output level:+21dBm maximum
• Distortion: 0.15% at 10dBm into 600 ohms
