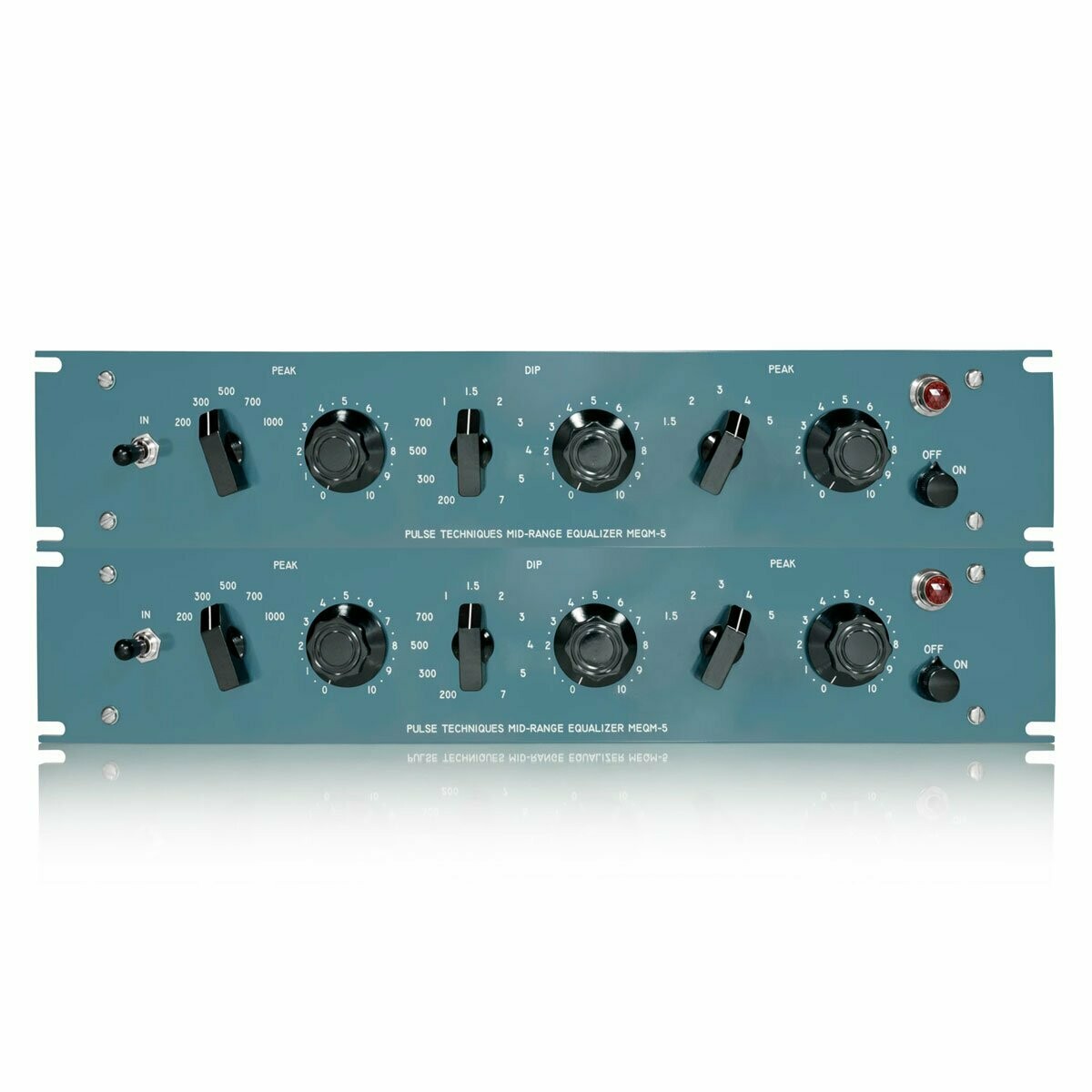

Pultec MEQM-5 Matched Pair Mastering Equaliser

Use the Pultec MEQM-5 midrange mastering equalizer to fine-tune this crucial frequency range in your mixes, while adding undeniable Pultec vibe too. The MEQM-5 dedicates its existence to everything between 200Hz and 7kHz. That's where your vocal tracks are most vibrant, where your guitars have girth and body, and generally where mixes either shine or fall flat. In classic Pultec fashion, you get two bands of midrange boost and one attenuation band (with 21-position stepped switches for easy setting recall), and that's all you need to add amazing mojo to any track with the Pultec MEQM-5 midrange mastering equalizer.

Magical tools revered for their capability to improve the sound of audio simply by passing signal through them, Pultec equalizers, such as the MEQM-5, are the stuff of legend. You've heard them on countless hits. Rare vintage units cost a pretty penny - if you can find one in good working order. So naturally, there have been many hardware and software "re-creations" over the years. Well, now you can grace your recordings with the sweet sound of the MEQM-5: a genuine made-in-America Pultec EQ.

Long story short, a detailed, vibrant, rich midrange is what separates world-class mixes from the rest. It's where most of the sonic excitement of your mix lives, and the MEQM-5 gives you two bands of boost and one attenuation band to shape it just right. The sound is amazing, and with a little experimentation, you'll be enhancing vocal intelligibility and beefing up guitars with incredibly musical results.

When you're mastering with outboard gear, it's crucial to be able to accurately recall settings. The MEQM-5 mastering equalizer sports 21-position stepped switches for its boost/attenuation controls. The tapers have been engineered to give you a maximum of 10dB of boost/cut, with .5dB step increments. So when you need to recall exact settings, the MEQM-5 makes it easy and precise.

Features:

• Thank Pultec for decades of amazing recordings
• A time-proven solution for your mix's crucial midrange
• Precise stepped controls for accurate recall
• 1-channel, 3-band midrange equalizer built exactly like the original, legendary Pultec units
• Combines the vintage character of original Pultecs with the reliability of modern design
• Incredibly low noise floor for a pure sound
• 21-position stepped switches make setting recall easy
• Fantastic EQ for guitars, vocals, woodwinds, and other midrange-rich material
• Separate boost and cut bands provide surprising creative potential

PLEASE NOTE- ALL UNITS ARE FACTORY 220/230V. US PURCHASED MODELS ARE 110V ONLY AND HAVE NO WARRANTY OUTSIDE THE US

Specifications

• Number of Channels - 1
• Number of Bands - 3
• Tube - Yes
• Bypass - Yes
• Inputs - 1 x XLR
• Outputs - 1 x XLR
• Rack Spaces - 2U
• Boost/Cut Range
  +10dB low-mid boost
  +8dB high-mid boost
  -10dB midrange attenuation
• Frequency Response - 20Hz-20kHz
• Freq Range Hi-Mid - 1.5kHz-5kHz
• Freq Range Mid - 200Hz-7kHz
• Freq Range Lo-Mid - 200Hz-1kHz
• Height - 3.5"
• Width - 19"

Spécifications

• 20, 30, 60, 100 CPS (Hz) shelf boost, 0 - 10 dB in 0.5 dB steps
• 20, 30, 60, 100 CPS shelf attenuate, 0 - 10 dB in 0.5 dB steps
• 3, 4, 5, 8, 10, 12, 16 KCS (kHz) peak boost, 0 - 10 dB in 0.5 dB steps
• 5, 10, 20 KCS shelf attenuate, 0 - 10 dB in 0.5 dB steps
