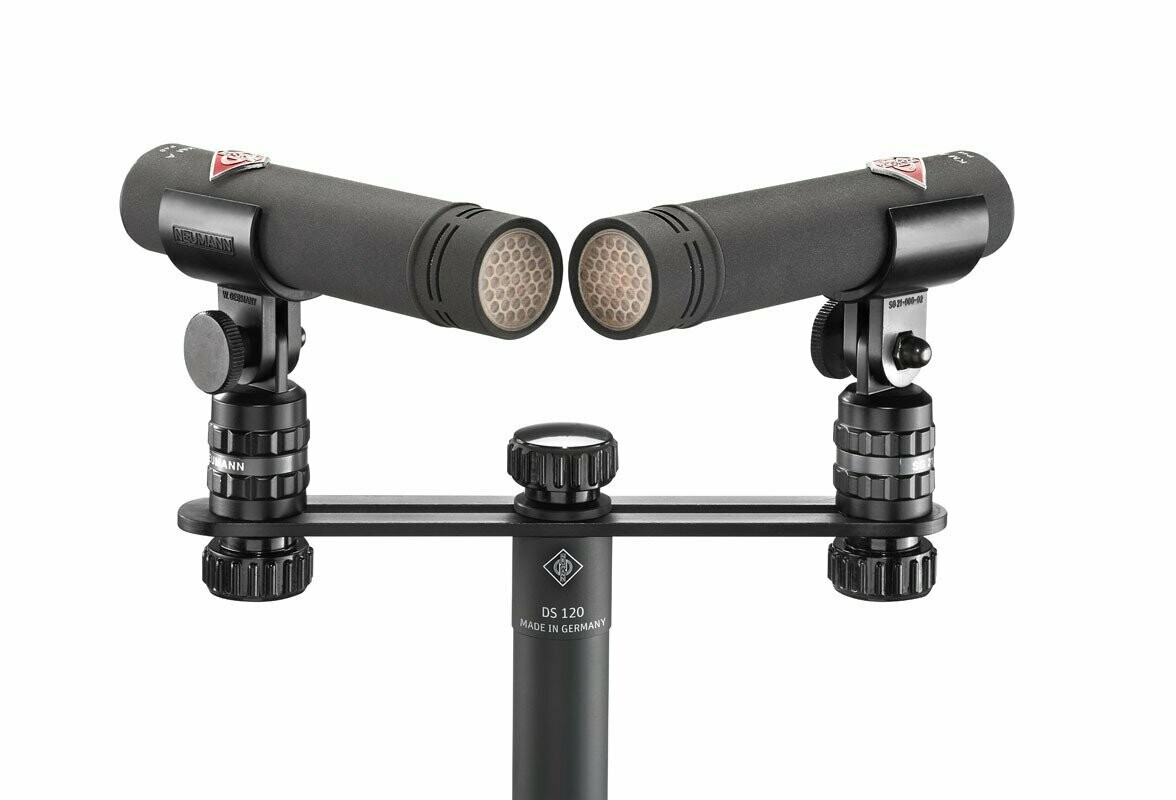

NEUMANN KM 183 A nx

Acoustical operating principle

Pressure transducer

Directional Pattern

Omnidirectional

Frequency Range

20 Hz ... 20 kHz

Sensitivity at 1 kHz into 1 kohm

12 mV/Pa ± 1 dB

Rated Impedance

50 ohms

Rated load impedance

1 kohms

Equivalent noise level, CCIR ¹

24 dB

Equivalent noise level, A-weighted ²

13 dB-A

Maximum SPL for THD 0.5% ³

140 dB

Signal-to-noise ratio, CCIR (re. 94 dB SPL) ⁴

70 dB

Signal-to-noise ratio, A-weighted (re. 94 dB SPL) ⁵

81 dB

Maximum output voltage

10 dBu

Supply voltage (P48, IEC 61938)

48 V ± 4 V

Current consumption (P48, IEC 61938)

3.2 mA

Matching connector

XLR 3 F

Weight

approx. 80 g

Diameter

22 mm

Length

107 mm
