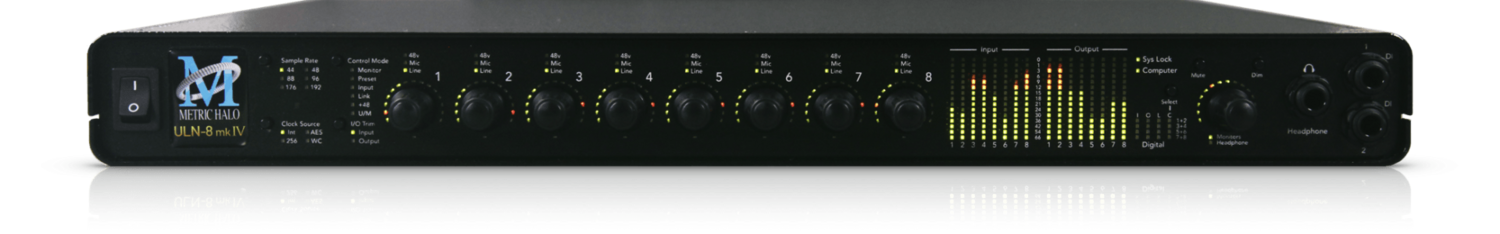

METRIC HALO ULN 8 3d MK4

Différences entre ULN-8 mk IV et ULN-8 3d
Caractéristiques de l'ULN-8 mk IV :

Un nouveau design analogique et de convertisseur avec encore plus de détails, de corps et d'âme.
Une réduction énorme de la latence du convertisseur (RTL)
Une conception nouvelle génération optimisée pour les boucles analogiques à gain unitaire à faible latence.
Un système de coupure de la sortie basé sur des relais pour des cycles d'alimentation sans clics ni pops.
Réduction de 35% de la consommation d'énergie - il fonctionne plus frais et est meilleur pour l'environnement

Features in Detail

• 8 Channels of stunning 192k A/D converters
  • Utterly transparent, spacious, detailed A/D conversion
  • Digitally Controlled Analog Input Trim
• 8 Channels of stunning 192k D/A converters
  • Warm, engaging, expansive and immersive D/A conversion
  • DC-coupled for ultra-low phase distortion
  • Digitally Controlled Analog Output Trim
  • All D/A outputs Relay Shunt muted for direct connection to amps/monitors
• 2 Channels of stunning 192k D/A converters with integrated headphone amp
  • Featuring the same high-quality DC-coupled conversion as the main DACs
  • Dedicated, digitally-controlled high-power headphone amplifier
• 8 Channels of Exceptional Remote Controllable Ultra-Low-Noise Clickless Mic Preamps
  • Metric Halo custom High-Headroom Digitally Controlled analog preamps
  • Metric Halo Zero-Cross switching technology for clickless operation
  • Discrete gain and trim stages for ultra-high headroom operation (supports +20 dBu input)
• Analog Send/Return architecture for analog access to preamps (pre A/D)
  • Analog sends from preamps (multed pre-A/D)
  • Analog only preamp operation capable (with fine trim)
  • Integrated analog router to allow insert of external analog processing pre-A/D
• 2 Channels of Exceptional DI inputs suitable for instrument or turntable inputs
  • Ultra-High-Z for no instrument loading
  • Balanced or unbalanced operation
  • Jumper configurable pre-trim gain
• Integrated Surround Monitor Controller
  • Provides switching between any set of user specified sources (Host, USB, AES, Analog, ADAT, MADI or Mix)
  • Analog gain control for monitor output from Front Panel or computer
  • Mute, Dim, and Mono Fold-down
  • Non-destructive routable PFL/AFL Solo monitoring
  • Talkback and Listenback to Cue points
  • Independent channel level and delay calibration for each output path
  • Flexible B-Chain processing integrated in Output paths
  • Supports input and monitor paths from Mono to Atmos 7.1.4
• 8 Channels of 192k capable AES Inputs and Outputs
  • Available as computer I/O or direct routed I/O for converters
  • Support full channel count at all sample rates
  • Professional interfacing
• Open EdgeBus Card Slot available for Expansion via any one of:
  • AES/SPDIF EdgeCard (4 in/4 out)
  • DB-25 AES EdgeCard (8 in/8 out)
  • SPDIF + MIDI EdgeCard (2 in/2 out + MIDI I/O)
  • SPDIF + 2x ADAT EdgeCard (18 in/18 out)
  • 2x SPDIF + 2x ADAT EdgeCard (20 in/20 out)
  • 4x ADAT EdgeCard (32 in/32 out)
  • 2x MADI Optical EdgeCard (128 in/128 out)
  • 1x MADI Optical + 1x MADI Copper EdgeCard (128 in/128 out)
  • 4x MADI Copper EdgeCard (256 in/256 out)
• Comprehensive Front Panel Controls
  • Full support for standalone converter and preamp operation
    • Sample Rate selection
    • Clock source selection
    • Input source selection
    • Phantom power control
  • Tactile Control of Input and Output gains
    • Gain level indication with MH Digital Dual Vernier Technology
    • Numeric gain level indication while changing gains
  • Tactile Control Headphone level
  • Tactile Control Monitor Controller gain (mono - 7.1.4)
  • Preset recall
  • Multichannel gain linking control
  • Monitor Controller control surface
  • User-controllable brightness
  • User-controllable knob sensitivity
• Comprehensive, High Resolution 15 Segment Precision Front Panel Metering
  • Real, functional metering for analog inputs and outputs
  • Unique ‘Meter on knob’ functionality
  • Multi-color signal level/presence metering for AES inputs and outputs
• Comprehensive Clocking (Internal, Word Clock, AES, MHLink, EdgeBus)
• Dedicated internal clock sources for all rates
• Dedicated MIDI I/O
  • MIDI Input and Output on standard DIN connectors
  • MIDI transported to computer
• Dedicated SMPTE LTC I/O for Timecode without sacrificing any audio channels
  • Properly conditioned and band-limited SMPTE I/O on TRS balanced connections
  • Available to any CoreAudio application as audio streams
  • Directly routable to Session SMPTE decoder
• Rock-solid, time-tested sixth-generation software and drivers
• Integrated Mixing and Deep Instantiable DSP Processing (Includes Full +DSP License)
  • Fully configurable multibus mixer with surround support (up to 7.1)
    • Full Send/Return architecture
    • I/O Inserts
    • Pre and Post Insert routing
    • Auto-channel input monitoring with Session
    • Latency compensated Aux and Group Buses
    • On-strip Aux Sends
    • Aux on Main Surface Mode
    • Optional non-destructive PFL/AFL solo modes
    • Optional per-strip Hard Mutes
    • Link Groups
    • Mute Groups
    • DCAs
    • Ultra-low latency, on-the-metal monitoring
    • Insert model for inserting zero-latency plugins
  • Insertable +DSP plugin graphs for configurable processing
  • Insertable graph macros for complex, pre-configured processing
  • Includes over 100 world-renowned Metric Halo processing plugins, including:
    • ChannelStrip
    • DirtyDelay
    • Multiband Dynamics
    • Multiband Expander
    • TransientControl
    • MHCharacter
    • HaloVerb
    • Precision De-esser
    • Thump
    • SuperGate
    • SonicEQ
    • MBEQ
    • MBParallel 1, 2 & 3+4
    • MBGoodMath
    • MIOStrip
    • Dynamics (Compressor and Limiter)
    • EQ (6 band and 12 band)
    • Signal Processing primitives
    • Crossovers
    • and much more…
  • Per-channel and Per-bus Insertable Character™
• MHLink Interfacing between boxes with automatic box-to-box:
  • Routing
  • Clocking
  • Interface Aggregation
  • 1 Sample Routing Latency across entire domain
• Ethernet Interfacing to computer with MHLink Audio
  • Supports macOS v.10.9.x and newer
  • 128x128 channel interface @ 192k
• Driverless USB Class Audio Interfacing
  • macOS v.10.6.8 and newer
  • iOS (iPhone)
  • iOS (iPad)
  • Win 10 and newer
  • Android
  • Linux
  • Other USB UAC2 hosts
• Bidirectional Control Surface Support
  • Integrated Front Panel Tactile Controls
  • Mackie Control Protocol Control Surfaces
  • Eucon Control Surfaces
  • Avid Control via iPad/iPhone/Android
  • IR Remote
• Session: Integrated Multichannel Tracking DAW
  • Multichannel, multi-box DAW-style high-performance recorder
  • Multitrack DAW-style playback with cueing
  • Overdub and editing support
  • Integrated segment fades and multisegment overlap
  • Exceptional Stability and Sound Quality
  • Realtime waveform display
  • Extensive File Format support (BWF, WAVE, AIFF)
  • BWF time-stamping from TOD or LTC (any input channel or dedicated SMPTE input)
  • Support for extensive BWF metadata
  • Support for extensive iXML metadata
  • Support for limiting record file size and seamless file breaking
  • Seamless manual file breaking (with time-stamping)
  • Support for mirrored recording (recording to multiple drives at once)
  • Pre-roll/Pre-record
  • Dreamcatcher™ Level Based trigger
  • Timecode based trigger
  • Monophonic and polyphonic recording (determined by source strip width)
  • Support for overall poly-file recording for film/field recording workflows
• DC-Powerable
  • Supports battery power with no inverter
  • External power via XLR-4 Locking Connector
• High quality, custom designed formed powder-coated aluminum case
  • Strong
  • Light weight
  • Scratch and fingerprint resistant
  • Smooth contours for snag-free transportation in a gig-bag
  • Rack-mountable with included rack-ear kit
• Exceptional Power Performance (only 20 Watts nominal / 25 Watts max)
• Silent, fan-less design
• Low mass (6 lbs / 2.7 kg)
• Extremely Compact (everything in 1 RU)
• Includes MHLink and USB-A to USB-C Cable kit
• Includes External Power Supply and IEC cable
• Future-Proof, Expandable, and software-enhanceable
