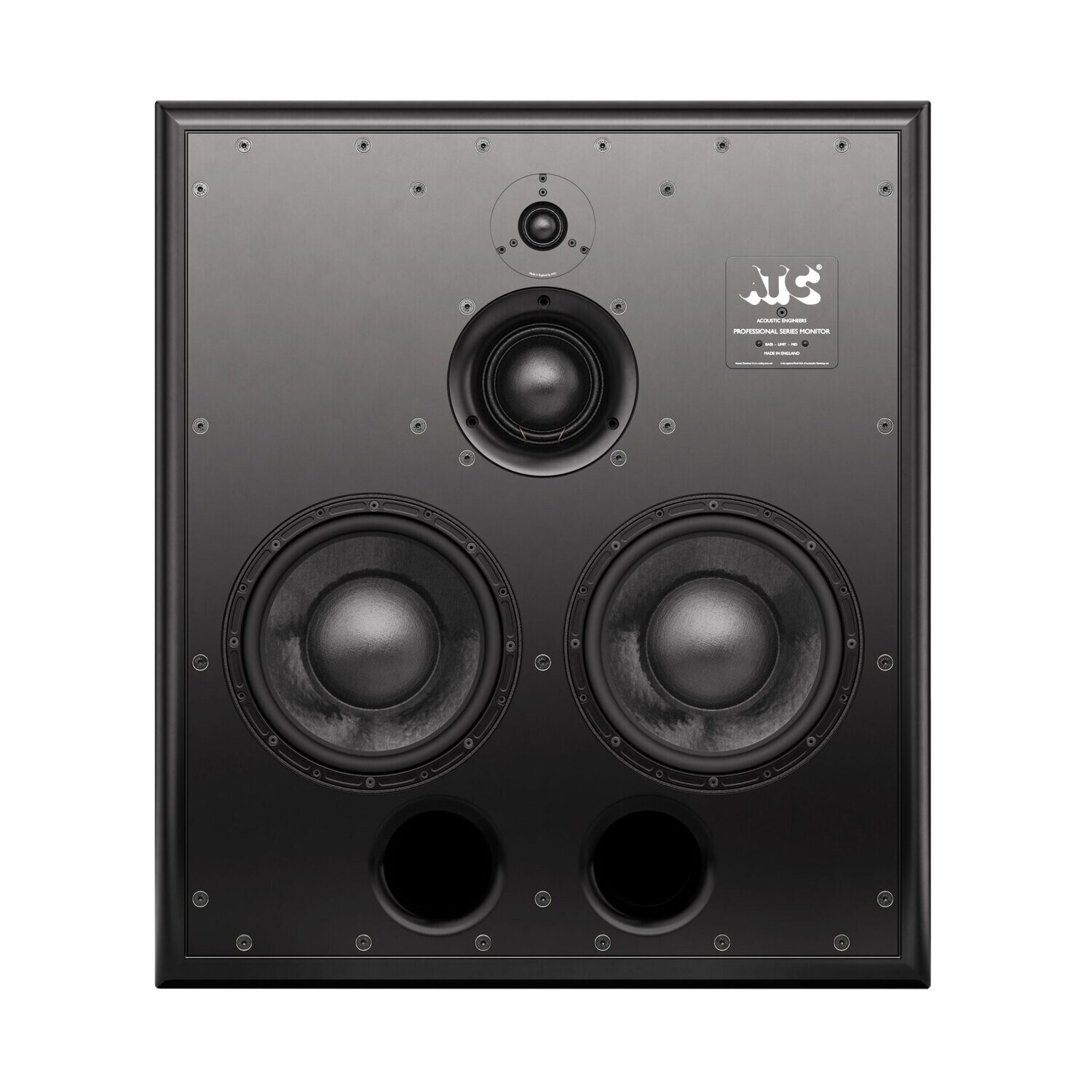

Drivers : HF 25mm, Mid 75mm, LF 2x234mm

Amplitude Linearity (±2dB) : 50Hz-17kHz

Cut-off Frequencies (-6dB, free-standing) : 30Hz, 22kHz

Horizontal Dispersion : ±80°, Coherent

Vertical Dispersion : ±10°, Coherent

Max. Continuous SPL (1 metre) : 115dB

Crossover Frequencies : 380Hz, 3.5kHz

Input Connectors : Male XLR

Input Sensitivity : 1V

Input Sensitivity Trim : ±6dB

Input Impedance : Balanced > 10kOhms

Amplifier Output : Bass 200W, Mid 100W, High 50W

Filters : Even Order Critically Damped

Overload Protection :
Active FET momentary gain reduction plus thermal tweeter protection

Front Panel Indicators :
Power On indicator, Gain Reduction warning

LF EQ :+6dB @ 40Hz

Dimensions (HxWxD) :
715 x 625 x 420mm (28.2" x 24.5" x 16.5") Depth with amplifier at rear adds 3"

Weight :

73kg / 160.6lbs
